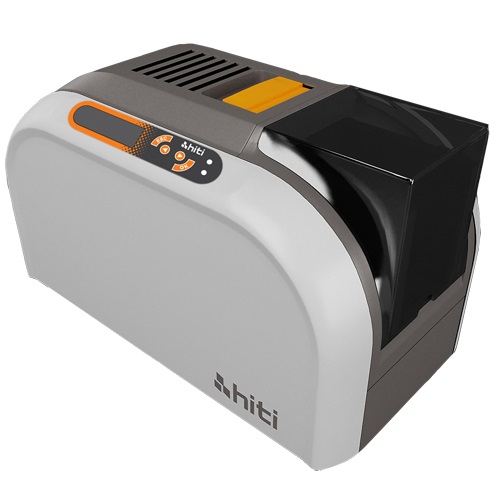

ID Card Printer Hiti CS-200e Tanabutr

Special pre-VAT price:  Baht 29,970 (from 33,300)
*till 31/12/18 only!

Free: 1 color ribbon (lasts 400 cards), 1 black ribbon (lasts 1000 cards)

Quality printer with 3-yr warranty on printer and printhead regardless of printing times & FREE service!*

- Trusted card printers by customers all over Thailand:  leading department stores, Thai & international schools, state agencies, factories, shops and many companies & large organizations.
- Card printers made in Taiwan by Hiti, a leader in digital photo products and services, listed on Taiwan Stock Exchange.
- Memory 64 MB. to process large files faster.
- Unique Hiti hardware technology coupled with Kyocera printhead make our printhead more robust.  Less prone to burned out printhead element problem.
- Save your cost! Free cleaning roll with every roll of genuine Hiti ribbon.
- Free installation and training.
- Instant new printhead replacement for a faulty one within 3-yr. warranty period regardless of scratches found on the printhead.  No time wasted on RMA process.

*(Remark: warranty does not cover impact/ water/ power surge damage and misuse.)

cs200e

CS-1

Specifications

Unconditional 3-year warranty on printer & printhead regardless of print times.

  • The printer and the print head have " unconditional " warranty of 3 years, during which any faulty or cracked print head will be replaced unconditionally free-of-charge.
  • Display status on LCD screen.
  • Memory 64 MB.
  • Include Software design your own card that can connect your database.
  • High Speed with Enrichment Color Performance.
  • Versatile Add-on Modules (Optional) such as Mag. encoder, RFID card encoder and Smart card encoder.
  • Can be made to print both sides of the cards in one go with the option of "flipper" module.
Model Name HiTi ID card printer CS-200e
Print Techology Dye Sublimation (Direct-to-card)
Print Capability Edge-to-edge printing
One-sided or dual-sided printing1
Full color (YMCKO) and monochrome printing
Print Resolution 300dpi
Display LCM (Liquid Crystal Monitor)
Memory 64MB
Print Speed2 21 sec for a full color YMCKO
4.5 sec for a resin black
Card Format CR-80 ISO7810 (53.98mm x 85.60mm)
Thickness from 0.25mm~1.0mm (10mil~40mil)
Accepted Card Type PVC or polyester cards with polished PVC finish
Input Capacity 100 cards (0.76mm / 30mil)
Output Capacity 50 cards (0.76mm / 30mil)
Driver - Compatible OS Win XP, Vista, Win7 (32/64bit), Win8 (32/64bit), Win10
Mac OS X 10.6 or above
Interface USB2.0, Ethernet (Optional Module)
Bundled Software CardDesiree CS ( For Windows PC only )
Power 24.5V, 100W DC Adapter
Printer Dimension 197.8mm(W) x 354mm(L) x 204mm(H)
Printer Net Weight 4.9kg / 10.8lbs (print media excluded)
Certifications FCC, CE, CCC, BIS, cTUVus
Operating Condition 15~32℃ (59~89.6℉) , 20~75% RH non-condensing
Print Media Full panel YMCKO 400 roll (Ribbon only),16 rolls in a carton
1/2 panel YMCKO 560 roll (Ribbon only),16 rolls in a carton
Monochrome Resin Black 1000 roll (Ribbon only),16 rolls in a carton
YMCKOK 330 (Ribbon only), 16 rolls in a carton
KO 500 prints
Optional Encoding Modules Contact smart IC chip encoding module
Contactless (RFID) encoding module(ISO 14443A & B, ISO 15693)
Magnetic stripe card encoding module(ISO 7811 Hi-co/Low-co)
Other Options & Accessories Flipper module
High capacity input hopper (400 cards loader)
Ethernet TCP-IP connection module
Cleaning roller (Dust arrester excluded)
Cleaning kit

1. Flipper module required 2. Under specific conditions

Card productivity management software: Accessories
software

CardDesiree CS

  • Friendly Template Design Interface
  • Convenient Database Connection
  • Batch Print Management
  • Superb Photo ID Editing Functions
cleaning roll

Cleaning Roller

A pack contains 4 rollers.
4 packs in a carton

Optional Modules

options
