Face scanners FaceStation2
Full 2-year warranty including free service charges
Click here to view Facestation2
| FaceStation 2 |

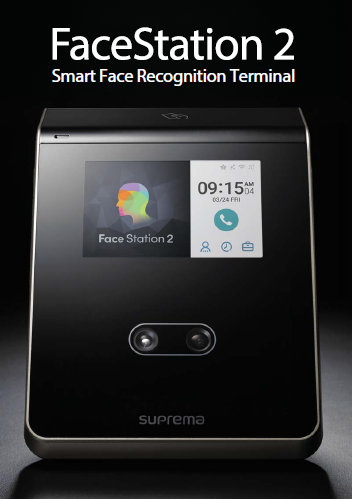

Suprema FaceStation 2 is the most advanced face recognition terminal providing loads of the world’s best features. Powered by Suprema’s latest innovation in facial biometrics, FaceStation 2 offers unrivalled matching speed, accuracy and level of security. With Suprema’s patented optic engineering, FaceStation 2 achieves up to 25,000 lx of operating illuminance which in turn, brings all-round confidence regardless of lighting conditions. Packed in an ergonomically-designed structure, FaceStation 2 provides exceptional performance and usability for diverse access control and time attendance sites, large or small.
Features
| Ultra Performance | |
 |
• Matching Speed: 1:3,000 match/sec |
| • Group Matching: 1:5,000 match/sec | |
| • User Capacity: Max 30,000 users (1:1), 3,000 users (1:N) | |
| Highest Operating Illuminance | |
 |
• Operating illuminance from 0 lx to 25,000 lx |
| • Highest operating illuminance available | |
| • Covers complete darkness to all indoor lighting conditions | |
| Enhanced Security | |
 |
• Live face detection: IR-based image analysis to prevent spoofing by printed images and LCDs |
| • Enhanced security by Android 5.0 Lollipop | |
| • High quality Image log | |
| Multi RFID Card Reading | |
 |
• LF(125KHz), HF(13.56MHz) dual-band |
| • Reads all card types that HID multiCLASS supports | |
| • (EM/HID Prox/MIFARE/iCLASS/DESFire/FeliCa/NFC) | |
| Ergonomics & User Convenience | |
 |
• Extended height range: 145cm – 210cm |
| • Tilt-type bracket for wheelchaired persons & children | |
| • Android 5.0 Lollipop based intuitive GUI | |
| • Improved face enrollment procedure |
Specifications
| Category | Features | FS2-D | FS2-AW B |
|---|---|---|---|
| Credential | Biometric | Face | |
| RF Options | 125kHz: EM 13.56Mhz: MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC |
(Includes all FS2-D's RF types) 125kHz:HID Prox 13.56Mhz: iCLASS SE/SR 2.4GHz: BLE |
|
| RF read range* | MIFARE/DESFire / iCLASS : 50 mm EM/HID Prox/Felica: 30 mm, BLE: 50 mm |
||
| General | CPU | 1.4 GHz Quad Core | |
| Memory | 8GB Flash + 1GB RAM | ||
| LCD type | 4” color TFT LCD | ||
| LCD resolution | 800 x 480 pixels | ||
| IR LED | 140 ea | ||
| Sound | 24 bit Voice DSP (echo cancellation) | ||
| Operating temperature | -20°C ~ 50°C | ||
| Operating humidity | 0% ~ 80%, non-condensing | ||
| Dimensions (W x H x D) | 141 mm x 164 mm x 125 mm | ||
| Weight | Device: 548g, Bracket: 74g (incl. washer and bolt) | ||
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE, BT SIG | ||
| Power | DC 24V 2.5 A | ||
| Face | Image dimension | 720 x 480 pixels | |
| Live Face Detection | Supported | ||
| Capacity | Max. User | 30,000 (1:1), 3,000(1:N) | |
| Max. Log | 5,000,000 (text), 50,000 (image) | ||
| Interfaces | Wi-Fi | IEEE 802.11 b/g (FS2-AWB only) | |
| Ethernet | Supported (10/100/1000 Mbps, auto MDI/MDI-X) | ||
| RS-485 | 1ch Host or Slave (Selectable) | ||
| Wiegand | 1ch Input, 1ch Output | ||
| TTL input | 1ch Input | ||
| Relay | 1 Relay | ||
| USB | USB 2.0 (Host) | ||
| Tamper | Supported | ||
| Video Phone | SIP-based VoIP (Video + Voice) | ||
System Configulation
