RF245

Long Range Proximity Reader

rf245

KEY Features

RF245
• Long Range Reade RF245-3M :
3m(10feet), RF245-5M: 5m(17feet), RF245-10M: 10m(34feet)
• 2.4GHz ISM Band
• Encrypted tag ID and Secure Protocols between Reader and Tags
• Multiple Tags Identification (30 Tags / Sec)
• 90°, One-directional Antenna
• 26bit Wiegand and RS232 Output Format
• Direct Bargate Output (Open Collector: 1sec)
• OTR (One Time Reading) and HOLD Control Input
• Applications : Parking Control, Logistics Tracking, Vehicle Tracking,
Asset Control, Personal Tracking

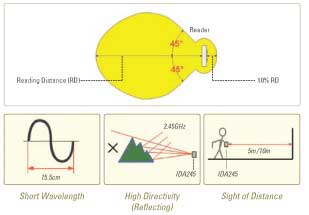

Steady and Stable Read Range

Simple to Use / Multiple Purpose / Outdoor Capacity

• Perfect for Long Range Parking Control
• Logistics Tracking
• Vehicle Tracking
• Asset Control
• Personal Tracking

136_3

Specifications

Model RF245-3M / RF245-5M / RF245-10M
CPU 8bit Microprocessor and ISM Band Receiver
Read Range RF245-3M: 3m(10feet), RF245-5M: 5m(17feet), RF245-10M: 10m(34feet)
Reading Time 250ns
Frequency 2.402GHz, ISM Band
Modulation Encrypted GFSK
Directivity 90°, One-directional
Receiver Gain Better than -80dBm
Power/Current DC12V / Max.50mA
Output Format 26bit Wiegand and RS232 / Bargate Output
RS232 Format 9600bps, parity none, 8 Data bits, 1 Stop bit
Bargate Output Low Active Pulse (1sec.), Open Collector Output, Max. 100mA
OTR (One Time Reading) Input Low Active Input, DC12V, Max. 50mA Current Drain
HOLD Input Low Active Input, DC12V, Max. 50mA Current Drain, Vehicle Detector Input
LED Indicator Built-in Red Color LED
Beeper Built-in Piezo Buzzer
Operating Temperature -35 to +65°C (-31 to +149°F)
Operating Humidity 10% to 90% relative humidity non-condensing
Color / Material Ivory / Polycarbonate / Anodized Aluminum
Dimension (W x H x T) / Weight 7.9” x 7.9” x 1.9” (200mm x 200mm x 50mm) / 1.36kg (3.0 lbs)
