Long Range Proximity Active Card IDA245
Active Card Programmer PRG3000
KEY Features
IDA245

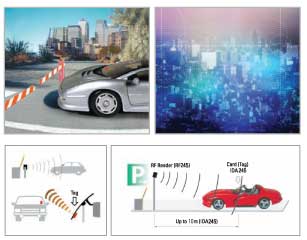

• Read Range 3m(10feet) with RF245-3M: 5m(17feet) with RF245-5M:
10m(34feet) with RF245-10M
• User programmable Site code, ID Number (using PRG3000 Active Card Programmer)
• Life Time Active Tags with Replaceable Battery CR2025
PRG3000 Active Card Programmer
• IDA150/IDA200/IDA245 / Active Card Programmer
• Slide-in Operation, Automatic Increase and Decrease
• Direct Connection to PC via RS232 (Application Software included)
• Encryption Algorithm applied
• Programmable Site Code, ID Number
IDA245 Card Holder
Specifications
Model | IDA245 |
---|---|
CPU | Low Power 8bit Microprocessor |
Read Range | 3m(10feet) / 5m(17feet) / 10m(34feet) with RF245-3M / RF245-5M / RF245-10M |
Carrier Frequency | 2.402GHz |
Directivity | Omni – directional |
Antenna | Monopole Antenna |
Transmit Power | -10dBm |
Modulation | Encrypted GFSK |
Wake-up Time | Approx. 0.7sec |
Site Code | 256 Site Code (000~255) |
Tag ID numbers | Maximum 16 Millions ID Numbers per Site Code |
Encryption | 16bit IDTECK’s Secured Algorithm |
Power | Coin Cell Lithium Battery, 3V 150mAh, CR2025 |
Battery Life Time | 3 Years (@ 1sec Wake-up Time), Battery Replaceable (CR2025) |
Operating Temperature / Operating Humidity | -20° to +65° C (-4° to +149° F) / 10% to 90% relative humidity non-condensing |
Dimension (W x H x T) / Weight | 2.1” x 3.4” x 0.18” (54mm x 86mm x 4.5mm) / 20gram (0.04lbs) |
Model | PRG3000 | |
---|---|---|
CPU | Dual 8bit Microprocessor and ISM Band Receiver | |
Memory | Program Memory | 2KByte ROM |
Data Memory | 128Byte EEPROM | |
Reader | Built-in ISM Band Reader | |
Overwrite Time (Card) | Less than 3sec. | |
Power / Current | Adapter (AC110V / 220V, Output DC12V, 500mA) | |
Input Port | 1ea for RS232 Communication (DB9 Jack) | |
LED Indicator / Beeper | 5 Array LED Indicators (Red, Green and Yellow) / Piezo Buzzer | |
Data Encryption | Crypto Encryption Algorithm | |
Software | PRG3000 Application Software included | |
Operating Temperature | 0° to +50°C (+32° to +122°F) | |
Operating Humidity | 10% to 90% relative humidity non-condensing | |
Color / Material | Light Gray / HD-ABS | |
Dimension (W x H x T) / Weight | 6.18’’ x 7.80’’ x 4.72’’ (157mm x 198mm x 120mm) / 1090g (2.4lbs) |
