Finger007

ASK [EM] Format
Fingerprint Identification (Proximity / PIN)
Time & Attendance Access Controller

ipfinger007

KEY Features

• 1:1 Verification and 1: N Identification
• Identification Method: by PIN Key (default) by Auto Touch Sensor (optional): IP-FINGER007A
• 125KHz Proximity / PIN and Fingerprint Recognition
• ASK [EM] Format
• Dual Function for Access Control and Time & Attendance
• Fingerprint Registration 1,000 / 2,000 / 4,000 Users
• User IDs 10,000 - 50,000 Users (Including Fingerprint Registration)
• Event Buffers 10,000 - 50,000 Events
• ID only Function for Fingerprint Unregisterable Person
• Standalone / Network Communication via RS232 / RS422 / RS485 (Max.32ch), TCP/IP (External LAN Converter required)
• 1ea of External Reader Port for Anti-passback Function : 26bit Wiegand, 4 / 8bit Burst for PIN
• Independent 4 Inputs and 4 Outputs including 2ea of 2 Form-C Relay Outputs
• High Protection from Scratch and ESD (Electro Static Discharge)
• High Quality Optical Sensor
• Dual Tamper Switches
• Alarm Event Monitoring using Tamper Switch (by Application Software)
• Options: 1,000 / 2,000 / 4,000 Fingerprint Users Auto Touch Sensor for Identification (IP-FINGER007A)
• Compatible Software: STARWATCH DUAL PRO I / II

ipfinger007

Time Schedules

• Time Code : 10
• Time Interval : 5
• Holiday Code: 10
• Holiday : 32

Comparison Table

IP-FINGER007 Built in 125KHz (4”) Proximity Reader
RF (PIN) only / Fingerprint only / RF (PIN)+ Fingerprint
RF (PIN)+P/W (4digit) / RF+P/W (4digit)+ Fingerprint
IP-FINGER007A IP-FINGER007 including Auto Touch Sensor for Identification

Standalone Configuration

ipfinger007

Fingerprint Module Specifications

Resolution 500dpi
Capture Image Size 356 x 292 pixels
Extraction Image Size 248 x 292 pixels
Sensing Area 12.7mm x 14.9mm
Scanner High Quality Optical Sensor
FAR(False Acceptance Ratio) 0.001%
FRR(False Reject Ratio) 0.1%
ESD(Electro Static Discharge) 15KV
Verification Time Less than 1sec.
Identification Time Less than 2sec.

Specifications

Model IP-FINGER007
CPU 32bit ARM9 and Dual 8bit Microprocessor
Memory Fingerprint Module Program Memory 128KByte ROM
Data Memory 128KByte / 256KByte / 512KByte Flash Memory
Controller Program Memory 64KByte Flash Memory
Data Memory 512KByte SRAM (Battery back up)
Fingerprint Registration 1,000 / 2,000 / 4,000 Users
User IDs 10,000 - 50,000 Users (Including Fingerprint Registration)
Event Buffers 10,000 - 50,000 Events
Fingerprint Templates Size 800 Bytes for 2 Fingerprint Templates
Read Range IPK50: Up to 2 inch (5cm)
IPC80 / IPC170: Up to 4 inch (10cm)
Reading Time (Card) 30ms.
Verification Time Less than 1sec.
Identification Time Less than 2sec.
Power / Current 1ea (26bit Wiegand, 4 / 8bit Burst for PIN for Anti-passback)
External Reader Port 1ea (26bit Wiegand, 4 / 8bit Burst for PIN for Anti-passback)
Communication RS232 / RS422 / RS485 (Max.32ch), TCP/IP (External LAN Converter required)
Baud Rate 9,600bps (default) / 4,800bps, 19,200bps and 38,400bps (selectable)
Input Port 4ea (Exit Button, Door Sensor, Aux#1, Aux#2)
Output Port 2ea (2 FORM-C Relay Output (COM, NO, NC) / DC12V~18V, Rating Max.2A)
2ea (TTL Output / DC5V, Rating Max.20mA)
LCD Character LCD (2 Lines x 16 Char) / 2.62” x 0.55” (65.6mm x 13.8mm) Screen
Keypad 16 Key Numeric Keypad with Back Lighting
LED Indicator / Beeper 3 Array LED Indicators (Red, Green and Yellow) / Piezo Buzzer
Operating Temperature Fingerprint Module / LCD -15° to +40°C (+5° to +104°F) / 0° to +50°C (+32° to +122°F)
Controller / RF Reader -15° to +70°C (+5° to +158°F) / -35° to +65°C (-31° to +149°F)
Operating Humidity 10% to 90% relative humidity non-condensing
Color / Material Dark Pearl Gray / Polycarbonate
Dimension (W x H x T) / Weight 6.36” x 5.28” x 1.9” (161.5mm x 134mm x 48.5mm) / 547g (1.21lbs)
Certification UL, FCC, CE, MIC, RoHS

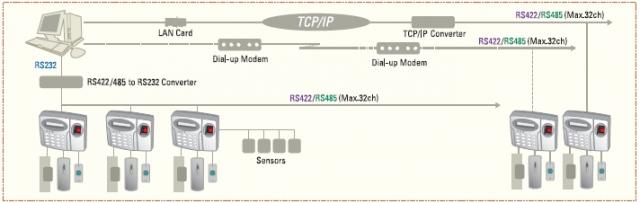

Network Configuration

ipfinger007
