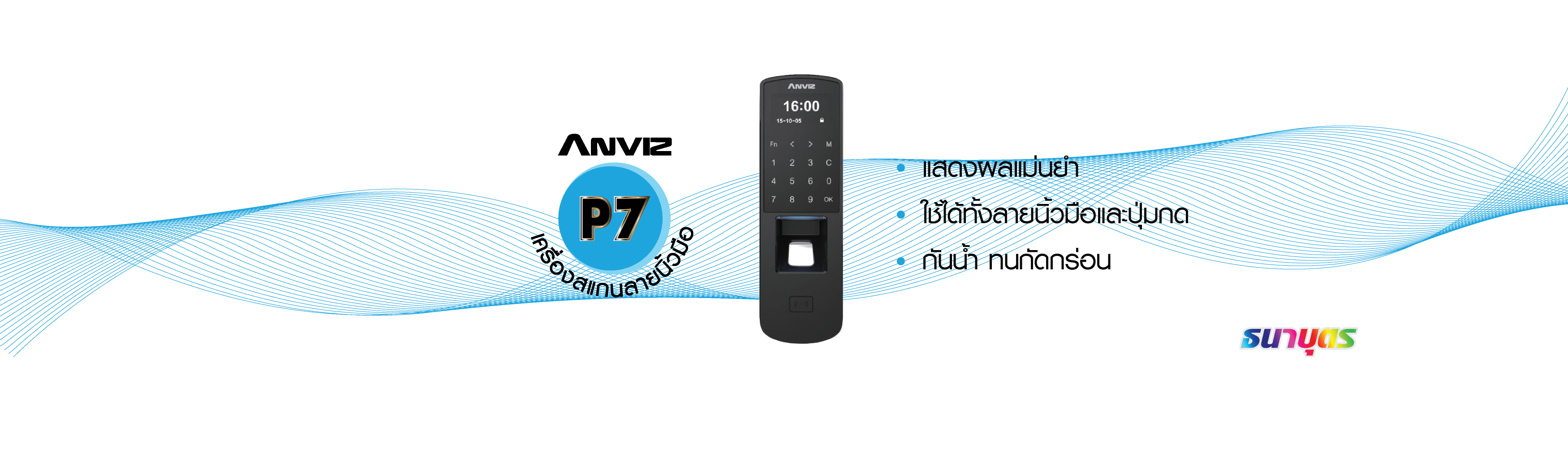

P7

P7

p7-1



BioNANO - The core algorithm

BioNano is applied in all Anviz biometric-based products used for identification.

bionano
  • Suitable for both wet and dry fingers
  • Automatically heals the broken lines in fingerprint images
  • Extraction of features in worn fingerprints
  • Fingerprint template auto update



Parameters Features
Item Description
  • Using Anviz intelligent core algorithm



  • 3000 Fingerprints, 3000 Cards, 50000 Records



  • Optical waterproof fingerprint collection device, abrasion resistance, adapt to all kinds of fingerprints



  • Touch activation fingerprints sensor and keypad



  • Support POE power supply for both device and lock



  • RS485, mini USB and TCP/IP communications, Wiegand output



  • Directly controlled door lock, grouping management, time setting



  • Tamper alarm door magnetic signal interface (known the door open and close state), to support himself back



  • Fingerprint, password and card combination of independence and recognition



  • Touch the bright background number keys



  • High precision OLED displays



  • Standard EM the RFID card reader module, optional Mifare module



  • Optional waterproof cover, realize outdoor use, IP53



  • Software support for period of time, group management, 16 group access permissions, flexible control



  • 32 entrance guard time real-time monitoring data, easy to learn and easy to use
Activation Mode Touch
Scan Area 22mm*18mm
Resolution 500 DPI
Display 128*64 OLED
Fingerprint Capacity 3000
Card Capacity 3000
Log Capacity 50000
Applicable Situation Max 3000 Users
Identification Mode FP, Card, ID+FP, ID+PW, PW+Card, FP+Card
Identification Time <0.5S
Communication Interface RS485, Mini USB Slave, TCP/IP, Wiegand Out&In
Card Reader Module EM RFID, Optional Mifare
Workcode 6-digit Work Code
Short Message 50
Relay Relay Output (COM, NO, NC or Direct Lock Control)
Door Open Sensor Yes
Tamper Alarm Yes
PoE Standard IEEE802.3af and IEEE802.3at
Operating Voltage DC 12V
Size 54(w)*170(h)*41(d)mm
Temperature -13°F/-25°C~158°F/70°C
