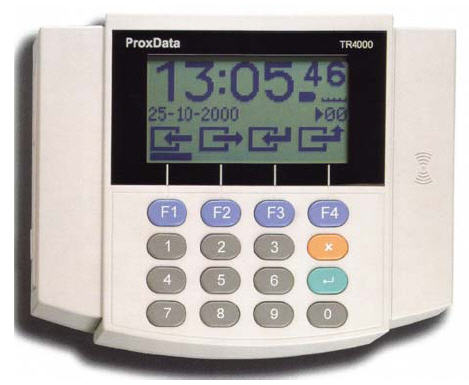

RFID card readers TR4030RU

Time Recorder with USB Disk Port

tr4000r

tr4000r

Key Features:

• Built-in USB disk port for loading data storage
• Online communications support via Ethernet (UTP) port for the TR4030 (standard TCP/IP protocol)
• Multi-language support
• Application Download Port (ADP) for quick firmware upgrades
• Wall-mount or desktop operation
• Internal UPS battery for up to 8 hours of non-stop operation in the absence of power
• Programmable bell (ring) and “default event” schedules
• Two high-power relays for external bell and optionalelectric lock control
• Large high-contrast graphic LCD shows time, data, shiftnumber, Event Menu (In, Out, Break, etc…) as well asnumerous messages

Specifications:

Display Graphical LCD, 104x52, black & white, no backlight
RFID Card Reader 125KHz, ASK, 64 bits, Manchester
RFID Reading Distance 10 cm
Database capacity App. 12000 records
I/O ports, TR4030 1x UTP Ethernet (PC/Master); 2x RS232 (Slave, Scanner)
Keypad 16 keys
Bell & Lock relay Max 2A, 12V
Power supply DC 12V, 500mA
Operating Temperature 0-55°C
Operating Rel. Humidity 10-90%
Dimensions (L x W x H) 187 x 150 x 95 mm
Packaging dimensions (L x W x H) 260 x 235 x 120 mm
Net Weight 2.3Kg
